Filling Complete carbonated drinks making machine / carbonated beverage production line

FOB Reference Price:Get Latest Price
$10,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
5-18KW
Model Number:
DCGF
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Cartons, Case
Packaging Material:
Wood
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Condition:
New
Application:
Beverage
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Place of Origin:
Jiangsu, China
Brand Name:
XINMAO
Dimension(L*W*H):
2350*1700*2300
Weight:
3800KG
Certification:
CE\ISO
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Bottle size:
0.25L-2L
Delivery time:
20 days
Processing Types:
gas containing water filling machine
Function:
washing,filling,capping
PLC brand:
Japan Mitsubishi
Processing:
Filling Machine
Filling speed:
1000-30000 bottles per hour for 500ml
Filling temperature:
3-5°C
filling material:
gas contain drinks,soda drinks
Supply Ability
Supply Ability:
10 Set/Sets per Month newest high quality sinaekato hot sell small carbonated drink fi
Packaging & Delivery
Packaging Details
Packaging Details:beverage manufacturing equipment : wooden case.
Port
FOB shanghai

Automatic Carbonated Drink Bottle Filling Machine For 200ml to 2000ml Bottled Soft drinks

Main introduction:



This machine has washer,filler,capper three functions in one body, automatic in total process, it is suitable for PET bottled cola ,sprint etc. It makes by high quality SUS304, key parts are precision machined by NC tool. The total machine uses advanced photoelectric detection technology to detect each part’s operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.



Main features of the equipment:



1)Using the wind sent access, with clamp hanging the bottle neck ; which can keep the bottle shape and high-speed.

2)Washing bottle mouth with special designed washing manipulator,clip in the bottle neck, stable and avoid secondary pollution.

3)The cylinder drives the valve, correct and reliable, high speed flow rate, high precision filling valve, CIP loop.

4)Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.

5)Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.



  Main specifications of the equipment:



Model

DCGF18186

DCGF24248

DCGF32328

DCGF404010

DCGF505012

DCGF606015

Productivity (500ml/H)

3000-5000

6000-7000

8000-10000

10000-12000

12000-15000

15000-18000

Filling temperature (°C)

5

5

5

5

5

5

Filling pressure (MPa)

0.2-0.35

0.2-0.35

0.2-0.35

0.2-0.35

0.2-0.35

0.2-0.35

Power (Kw)

5

6

8

12

15

18

Overall dimension (mm)

2350*1700

*2300

3200*1900

*2300

4300*2000

*2300

4500*3500

*2300

5000*4200

*2300

6000*5000

*2300

Weight (kg)

3800

5000

6000

9000

12000

15000



 flow chart:

pictures:

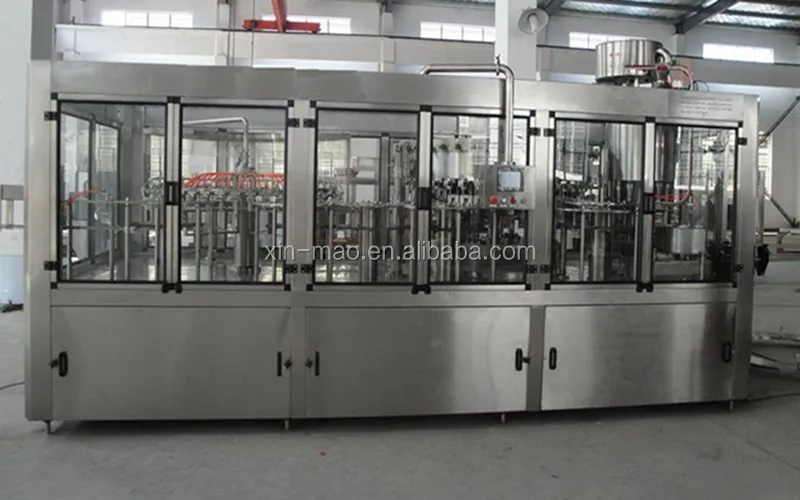

Body machine

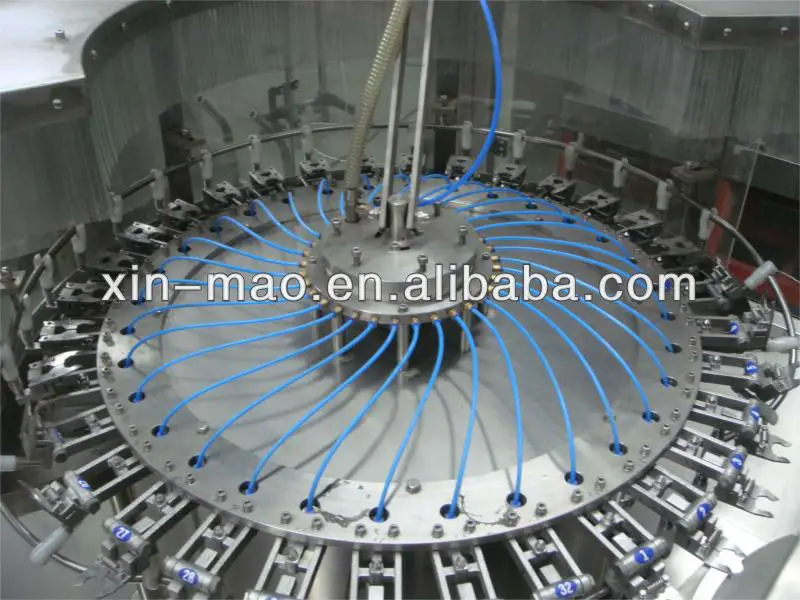

Washing

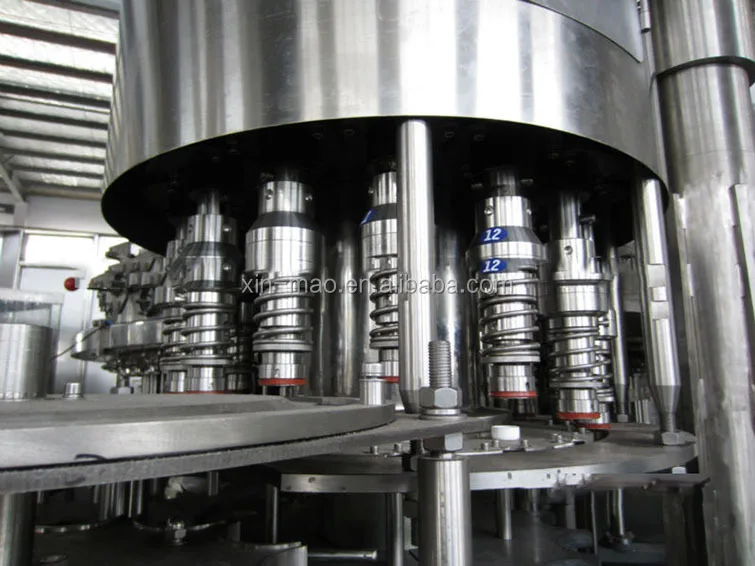

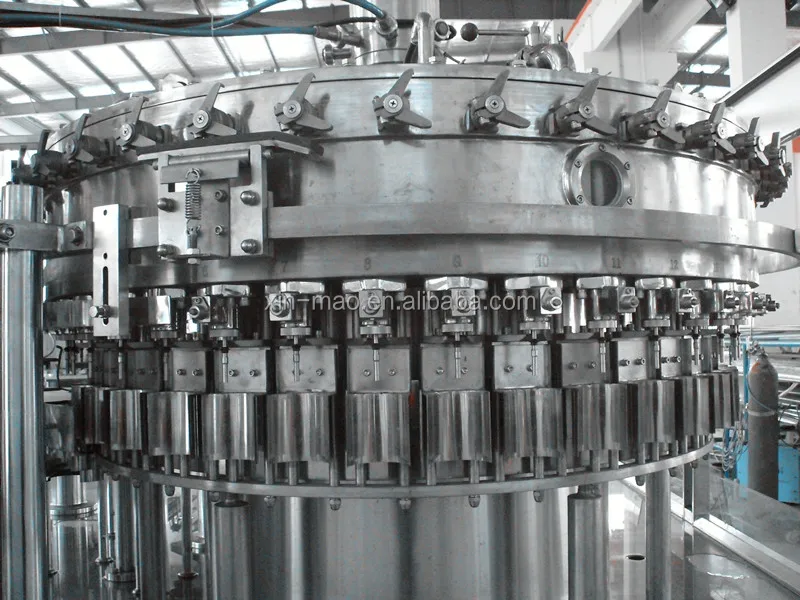

Filling:(PET bottle)



 Filling(glass bottle)

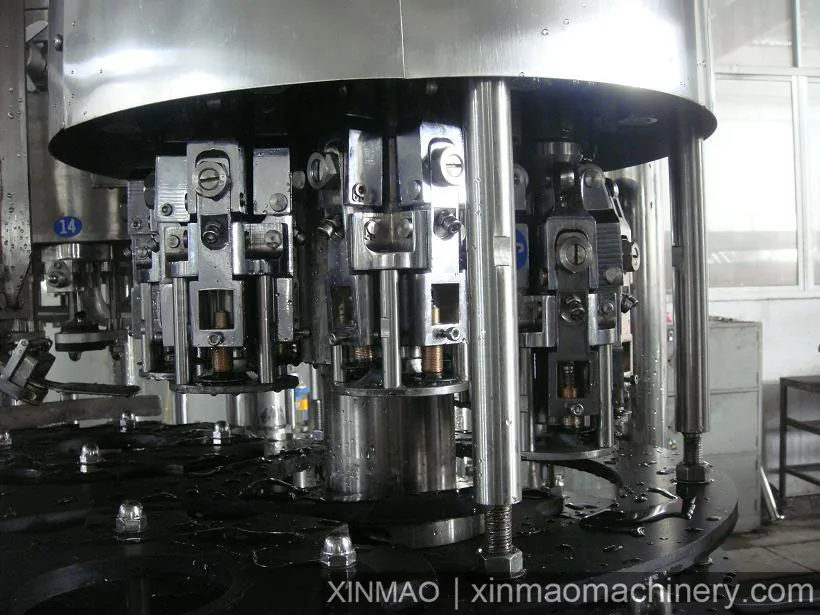

Capping(PET bottle)

 Capping(glass bottle)

Packing

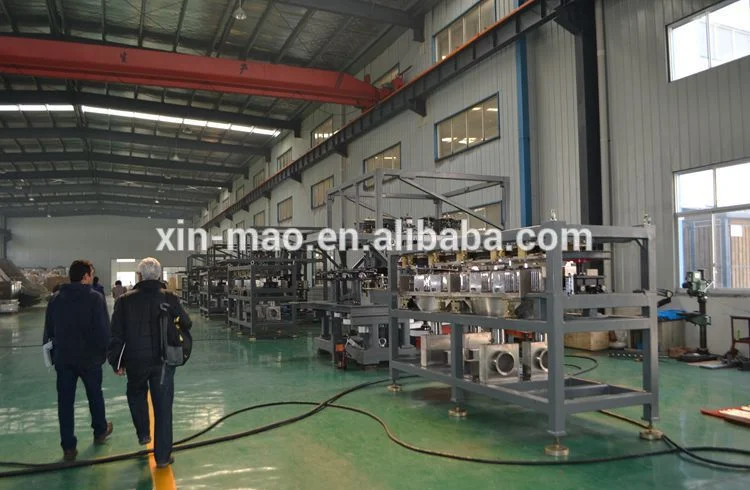

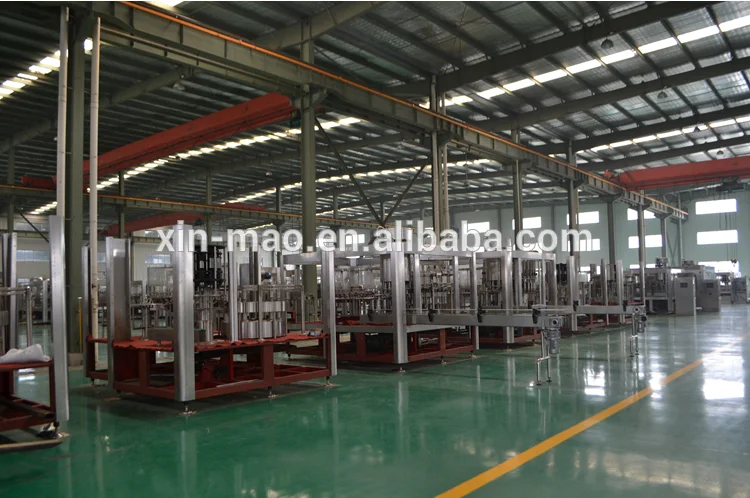

Workshop

Certificiation







Cooperate brand





Welcome to any inquiry from you!please offer some answers for the following questions in your inquiry.

1,How many bottles do you want to produce per hour?

2,What type of bottles do you want to fill,PET bottle or glass bottle?

3,Do you just want to a filling system or a whole production line including pretreatment system?

4,What capacity of bottles do you want to produce,500ml,1.5l or other type?
