Concentrated basil seed drink fruit juice making machine plant for sale

FOB Reference Price:Get Latest Price
$10,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
1.5kw
Model Number:
CGF18-18-6
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Cartons
Packaging Material:
Metal
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Condition:
New
Application:
Beverage
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
330V/220V
Place of Origin:
China
Brand Name:
XINMAO
Dimension(L*W*H):
1800*1000*1500mm
Weight:
2500kg
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Product name:
fruit juice making machine
Bottle type:
PET bottle/galss bottle
Production capacity:
2000-15000bph
Operation:
PLC control
PLC brand:
Mitsubishi
Material:
SUS 304 stainless steel
Situation:
Silvery white, brand new
Process type:
Juice filling machine
Others:
Concentrated Juice Making Machine
Supply Ability
Supply Ability:
20 Set/Sets per Month Concentrated basil seed drink fruit juice making machine plant f
Packaging & Delivery
Packaging Details
wooden case, Concentrated Juice Making Machine
Port
Shanghai port, Concentrated Juice Making Machine
Product Details

Blending System----Sugar Melting Boiler/Tank

There are two types of blending tank, single layer and three layers. Single layer type blending tank is with blending motor, but without heating function; three layers type is heated by steam, and it can also be cooled down by chilled water. The blending tank is made of stainless steel 304,  with internal and external polished. It is easy cleansing and corrosion resistance.

Mixing Tank/Agitator tank

To choose the right machine will greatly advance your production efficiency and production quality.

The stainless steel mixing tank can engineer heating, cooling or vacuum or other process
we have rich practical data for different product, with the data can help customer to choose the right machine.
The volume of the mixing tank from 100-10000L
Material: sus304 or 316L stainless steel
the closed structure prevent the dust fly or liquid splash

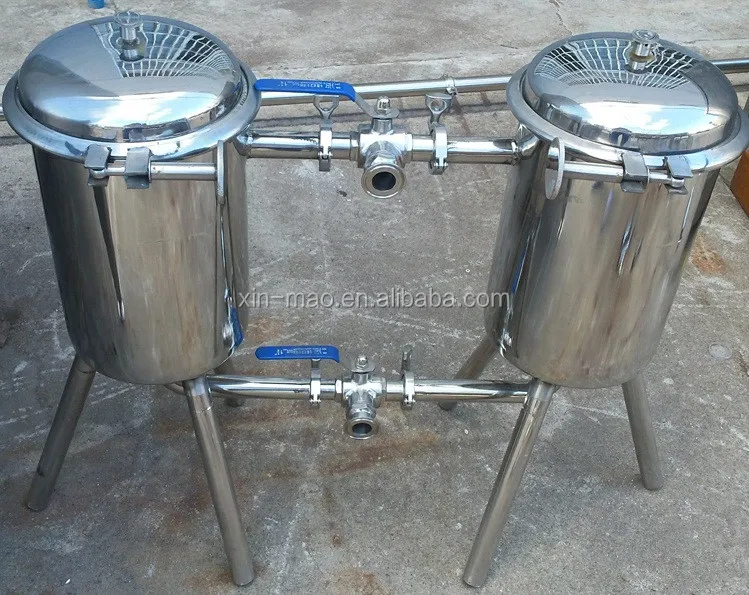

Duplex filters

Duplex filters are all made of high-quality stainless steel SUS304, is composed of two cylinders.
Inside and outside polishing 0.4μm, equipped with a pressure gauge at the top row of table valve, is suitable for the removal of liquid milk, sugar, beverage, oral liquid, such as invisible solid impurities in the liquid purification.
Two filters are used interchangeably, in the case of non-stop filter replacement, suitable for long-term continuous  production.

Homogenizer

The Homogenizerr equipment with extensive uses, which can homogenize and fine material liquids or make the material liquids to form high-pressured spray. It is widely used in the production of milk, cold drink, beverage, edible chemicals, and areas such as pharmacy, biologic technology and etc. When the material liquid is homogenized under high pressure, the liquid delamination can be prevented or reduced while the fineness, cleanliness, looseness and inner quality can be improved.

Filling System---fruit juice processing machine

This machine has washing ,filling and capping three functions in one body, total process is automatic, and it is suitable for high temperature resistant PET bottled juice and tea drink filling, it applies advanced micro-pressure gravity type filling principle, with perfect re-circulation system, without contacting with material, avoid secondary pollution and oxidation. It is made of high quality SUS304 stainless steel,the material of parts inside of the filling valve must be SUS316 . Main components are processed precisely by CNC machine tools. The machine adopts advanced photo electricity to detect running status. No bottle no filling. It is possible to realize man-machine conversation because of applying touch screen for operation.
Product Introduction

3000BPH Fruit Juice Liquid Filling Machine----Main performance

●Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape is not changed because of adopting hanging clamping bottleneck way.

●Adopting clamping bottleneck way to wash bottle mouth and avoiding touch screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter.

●Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.

●The capping system applies advanced French technology, when clamp the cap will screw immediately and magnetic torque type capping head.

●Main PLC and frequency changer are used famous brand, such as Mitsubishi and Omron etc.

Product Parameters
Model
RCGF14125
RCGF18186
RCGF24248
RCGF323210
RCGF404012
RCGF505012
Washing/Filling/Caping heads
14-12-5
18-18-6
24-24-8
32-32-10
40-40-12
50-50-12
Capacity BPH
(500ML)
3000-4000
5000-6000
8000-12000
12000-15000
15000-18000
18000-22000
Power (KW)
6
6
7
9
13
16
Weight (KG)
2800
3800
5000
6000
8000
10000
Shape--mm
(L×W×H)
2250×1600×2300
2300×1700×2300
2900×1900×2300
4300×3500×2300
4300×3900×2300
4600×4300×2300
Suitable for bottle type: Φ50-Φ100mm, height: 150mm-330mm
Product Processing
Product Details Show

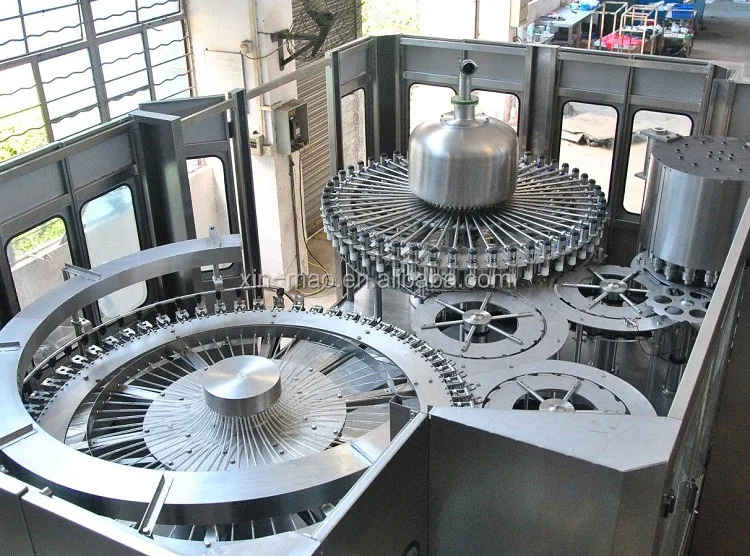

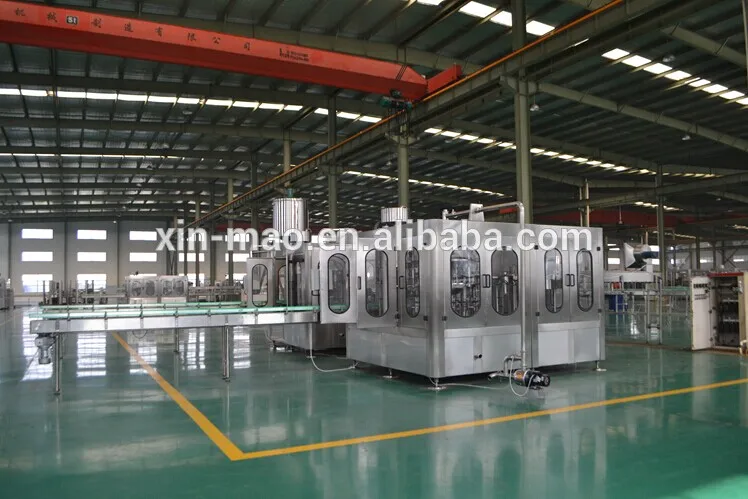

Whole Part

This 3-in-1 Filling machine is washing, filling and capping into a whole part. which is based on foreign advanced technology. It is developed on the basis of tea, juice and others beverage filling process requirements. Filling tempeature is under about 82-85 degrees.

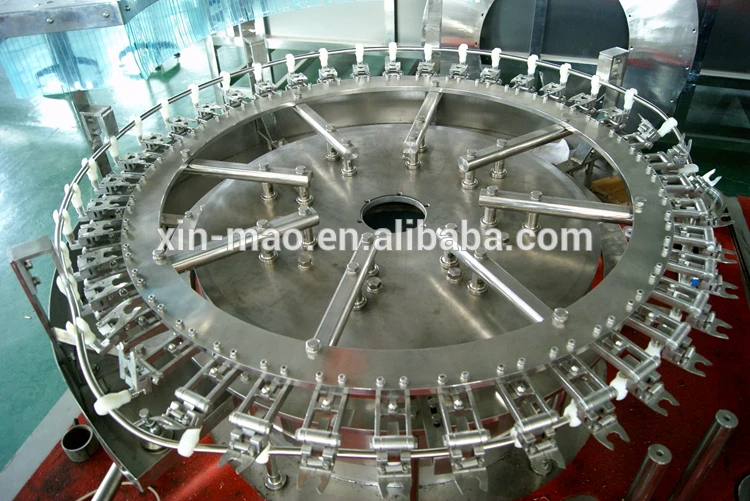

Washing Part

It adopts rotary design, which mainly used for washing empty bottles of juice and water etc. Then transfer the clean bottles into filling part.

PET bottles entrance to equipments by star wheel, the bottles clamped and reversed to make the bottle down. Washing with sterilizing water and drain well, then turn over the bottle up automatically. Main structure and washing part are made by stainless steel, simple structure and easy adjustable; Less contact with bottleneck, which can avoid secondary pollution effectively.

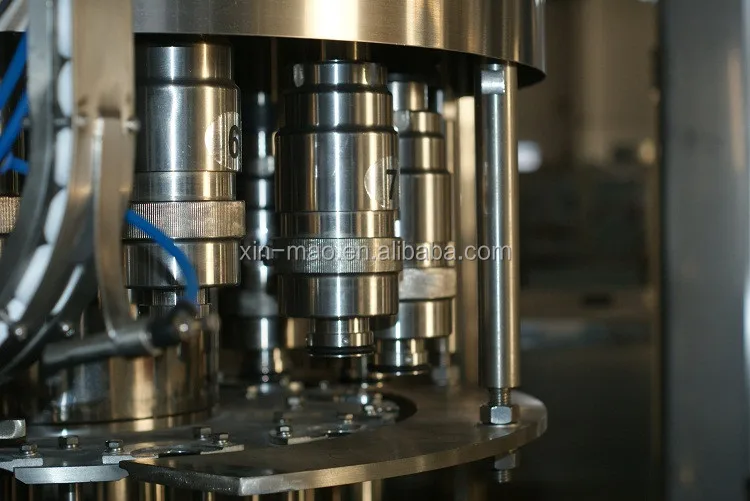

Filling Part

This Filling Machine is design by XINMAO, Filling valve adopts negative filling way, filling fast and sensitive; the precision of filling liquid surface is high; There is no spring in valve, materials don’t contact with the spring directly, which is good for cleaning valve. To make sure the filling process and filling temperature, when there is no bottle or closed down, the materials in valve is under micro back flow condition. Whole machine are controlled by PLC automatically.

Capping Part

This capping part uses magnetic torque type capping heads, automatic grasping cover, screw cap, immutability torque capping function.
